Heavy Beta Clamps with Aluminum Cushion

and Steel Hardware



BETA Hvy Aluminum-200-BOX



  • Recommended Systems with Greater than 1500 PSI Operating Pressure, Operations with Pressure Surges, and Applications with Wide Temperature Fluctuations
  • Absorbs High Levels of Shock, Noise, and Vibration
  • Cushions are Green Polypropylene or Aluminum
  • Aluminum Cushions are used in Higher Heat Applications up to 500°F

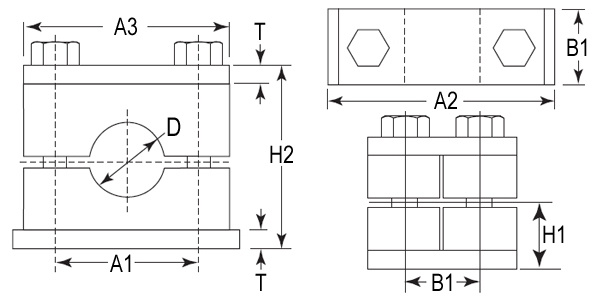

Diagram


D Group Tube* Pipe* Dimensions – inch (mm) Bolt
A1 A2 A3 B1 H1 H2 T
0.250 3 1/4″ 1.29
(33)
2.87
(73)
2.16
(55)
1.18
(30)
0.94
(24)
1.88
(48)
0.31
(8)
3/8″-16
x 1-3/4″
0.375 3/8″
0.405 1/8″
0.500 1/2″
0.540 1/4″
0.625 5/8″
0.675 3/8″
0.750 4 3/4″ 1.77
(45)
3.34
(85)
2.75
(70)
1.18
(30)
1.25
(32)
2.51
(64)
0.31
(8)
3/8″-16
x 2-1/4″
0.840 1/2″
0.875 7/8″
1.000 1″
1.050 3/4″
1.250 5 1-1/4″ 2.36
(60)
3.93
(100)
3.30
(84)
1.18
(30)
1.49
(38)
2.99
(76)
0.31
(8)
3/8″-16
x 2-3/4″
1.315 1″
1.500 1-1/2″
1.660 1-1/4″
1.750 6 1-3/4″ 3.54
(90)
5.90
(150)
4.52
(115)
1.77
(45)
2.16
(55)
4.33
(110)
0.39
(10)
1/2″-13
x 4″
1.900 1-1/2″
2.000 2″
2.250 2-1/4″
2.375 2″
2.500 2-1/2″
2.750 7 2-3/4″ 4.80
(122)
7.08
(180)
5.98
(152)
2.36
(60)
2.75
(70)
5.51
(140)
0.39
(10)
5/8″-11
x 5-1/4″
2.870 2-1/2″
3.000 3″
3.500 3″

*Heavy Clamp Assemblies with Steel Hardware & Aluminum CushionsHoseandFitings.Com Logo
