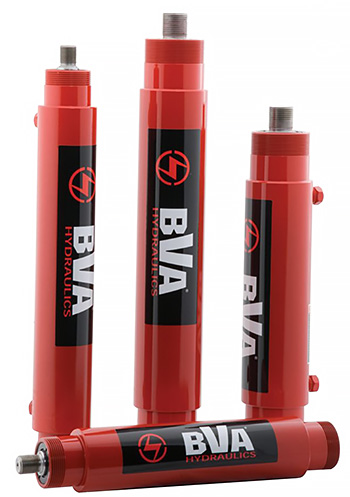

BVA HPD Series Precision Double Acting Cylinder
Features:
- Provides Hydraulic Power on Both Extend and Retract
- Designed for High Cycle Production Applications
- High Strength Steel Construction from Gun Drilled Solid Bar
- Rod Wiper Seals Keep Dirt and Contamination Out
- Clevis Eye Attachments are Available
- Maximum Working Pressure: 10,000 psi / 700 Bar

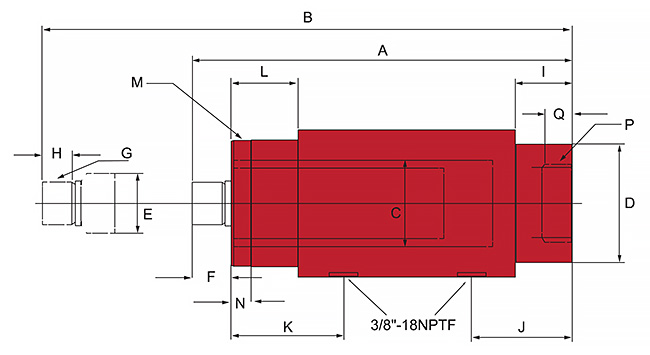

| SKU | Size (ton) | Push Effective Area (in²) | Pull Effective Area (in²) | Weight (lbs) | Collapsed Height A (in) | Extended Height B (in) | Center Hole Diameter C (in) | OD D (in) |
| HPD0906 | 9 | 1.77 | 1.01 | 14.6 | 13.78 | 19.88 | 1.50 | 2.52 |
| HPD0910 | 9 | 1.77 | 1.01 | 18.5 | 17.80 | 27.91 | 1.50 | 2.52 |
| HPD1606 | 16 | 3.14 | 1.56 | 22.0 | 15.31 | 21.57 | 2.00 | 2.99 |
| HPD1610 | 16 | 3.14 | 1.56 | 28.2 | 19.29 | 29.53 | 2.00 | 2.99 |
| SKU | E (in) | F (in) | G (in) | H (in) | J (in) | K (in) | L (in) | M (in) | N (in) | P (in) | Q (in) |
| HPD0906 | 0.98 | 0.98 | 3/4-1 | 0.75 | 150 | 2.20 | 1.50 | 2-12 | 0.60 | 1-11/16-18 | 1.37 |
| HPD0910 | 0.98 | 0.98 | 3/4-16 | 0.75 | 1.50 | 2.20 | 1.50 | 2-12 | 0.60 | 1-11/16-18 | 1.37 |
| HPD1606 | 1.42 | 1.16 | 1-1/8-12 | 0.98 | 2.12 | 2.87 | 2.12 | 2-5/8-16 | 0.98 | 2-3/16-16 | 1.61 |
| HPD1610 | 1.42 | 1.16 | 1-1/8-12 | 0.98 | 2.12 | 2.87 | 2.12 | 2-5/8-16 | 0.98 | 2-3/16-16 | 1.61 |
