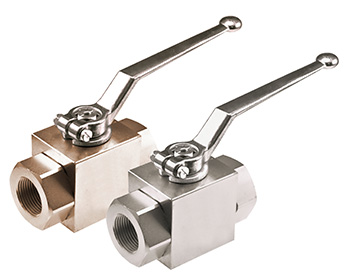

High Pressure Block Body

Ball Valve

BVHP-WP



Quality:

  • Carbon Steel with Zinc Chromate Plating
  • Full Bore up to 1 Inch Size, Standard Bore Above 1 Inch size
  • Pom Seats & Buna O-Rings Standard on Carbon Steel Valves



BVHP-Dimensions

BHVP Series

NPT SKU SAE SKU PSI MAX A BORE B C D E F G H I J
BVHP-02NPT 7250 0.16 1.67 2.80 1.38 0.57 1.18 4.33
BVHP-04NPT BVHP-04SAE 7250 0.24 1.67 2.80 1.38 0.57 1.18 4.33 1.34 0.18 0.21
BVHP-06NPT BVHP-06SAE 7250 0.39 1.75 2.87 1.57 0.69 1.38 4.33 1.34 0.18 0.21
BVHP-08NPT BVHP-08SAE 7250 0.51 1.90 3.27 1.69 0.71 1.46 4.33 1.42 0.20 0.21
BVHP-12NPT BVHP-12SAE 5800 0.79 2.46 3.74 2.17 0.92 1.77 7.09 1.97 0.24 0.25
BVHP-16NPT BVHP-16SAE 5075 0.98 2.62 4.41 2.56 1.16 2.17 7.09 1.97 0.24 0.25
BVHP-20NPTSP BVHP-20SAESP 5075 0.98 2.62 4.72 2.56 1.16 2.17 7.09
BVHP-24NPTSP BVHP-24SAESP 5075 0.98 2.62 4.88 2.56 1.16 2.17 7.09

*Full Bore up to 1 Inch Size, Standard Bore Above 1 Inch size
