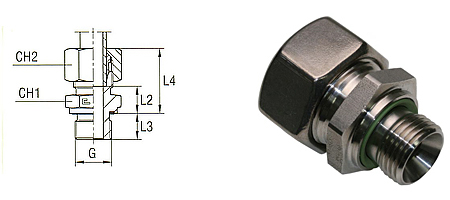

DIN 2353 Metric Compression by Male BSPP 60° Chamfer Adapter w/ Recessed Elastomer Seal
| HnF SKU |
TUBE OD (mm) |
G |
L2 (mm) |
L3 (mm) |
L4 (mm) |
CH1 (mm) |
CH2 (mm) |
| 1005-04LL-02 |
4 |
1/8 |
9,5 |
8 |
20 |
14 |
10 |
| 1005-06LL-02 |
6 |
1/8 |
8 |
8 |
20 |
14 |
12 |
| 1005-06L-02 |
6 |
1/8 |
8,5 |
8 |
23 |
14 |
14 |
| 1005-06L-04 |
6 |
1/4 |
10 |
12 |
24,5 |
19 |
14 |
| 1005-06L-06 |
6 |
3/8 |
11,5 |
12 |
26 |
22 |
14 |
| 1005-06S-04 |
6 |
1/4 |
13 |
12 |
28 |
19 |
17 |
| 1005-08LL-02 |
8 |
1/8 |
9 |
8 |
21 |
14 |
14 |
| 1005-08L-02 |
8 |
1/8 |
9,5 |
8 |
24,5 |
14 |
17 |
| 1005-08L-04 |
8 |
1/4 |
10 |
12 |
25 |
19 |
17 |
| 1005-08L-06 |
8 |
3/8 |
11,5 |
12 |
26,5 |
22 |
17 |
| 1005-08L-08 |
8 |
1/2 |
12 |
14 |
27 |
27 |
17 |
| 1005-08S-04 |
8 |
1/4 |
15 |
12 |
30 |
19 |
19 |
| 1005-08S-06 |
8 |
3/8 |
15,5 |
12 |
30,5 |
22 |
19 |
| 1005-10L-02 |
10 |
1/8 |
10,5 |
8 |
25,5 |
17 |
19 |
| 1005-10L-04 |
10 |
1/4 |
11 |
12 |
26 |
19 |
19 |
| 1005-10L-06 |
10 |
3/8 |
12,5 |
12 |
27,5 |
22 |
19 |
| 1005-10L-08 |
10 |
1/2 |
13 |
14 |
28 |
27 |
19 |
| 1005-10S-04 |
10 |
1/4 |
14,5 |
12 |
30,5 |
19 |
22 |
| 1005-10S-06 |
10 |
3/8 |
15 |
12 |
31 |
22 |
22 |
| 1005-10S-08 |
10 |
1/2 |
17,5 |
14 |
33,5 |
27 |
22 |
| 1005-12L-04 |
12 |
1/4 |
12 |
12 |
26,5 |
19 |
22 |
| 1005-12L-06 |
12 |
3/8 |
12,5 |
12 |
27 |
22 |
22 |
| 1005-12L-08 |
12 |
1/2 |
13 |
14 |
27,5 |
27 |
22 |
| 1005-12S-04 |
12 |
1/4 |
16,5 |
12 |
32,5 |
22 |
24 |
| 1005-12S-06 |
12 |
3/8 |
17 |
12 |
33 |
22 |
24 |
| 1005-12S-08 |
12 |
1/2 |
17,5 |
14 |
33,5 |
27 |
24 |
| 1005-14L-06 |
14 |
3/8 |
18,5 |
12 |
36,5 |
24 |
27 |
| 1005-14S-08 |
14 |
1/2 |
19 |
14 |
37 |
27 |
27 |
| 1005-15L-06 |
15 |
3/8 |
13,5 |
12 |
28,5 |
24 |
27 |
| 1005-15L-08 |
15 |
1/2 |
14 |
14 |
29 |
27 |
27 |
| 1005-15L-12 |
15 |
3/4 |
15 |
16 |
30 |
32 |
27 |
| 1005-16S-06 |
16 |
3/8 |
18 |
12 |
36,5 |
27 |
30 |
| 1005-16S-08 |
16 |
1/2 |
18,5 |
14 |
37 |
27 |
30 |
| 1005-16S-12 |
16 |
3/4 |
20,5 |
16 |
39 |
32 |
30 |
| 1005-18L-08 |
18 |
1/2 |
14,5 |
14 |
31 |
27 |
32 |
| 1005-18L-12 |
18 |
3/4 |
14,5 |
16 |
31 |
32 |
32 |
| 1005-20S-08 |
20 |
1/2 |
20,5 |
14 |
42 |
32 |
36 |
| 1005-20S-12 |
20 |
3/4 |
20,5 |
16 |
42 |
32 |
36 |
| 1005-20S-16 |
20 |
1 |
22,5 |
18 |
44 |
41 |
36 |
| 1005-22L-08 |
22 |
1/2 |
16,5 |
14 |
33 |
32 |
36 |
| 1005-22L-12 |
22 |
3/4 |
16,5 |
16 |
33 |
32 |
36 |
| 1005-22L-16 |
22 |
1 |
17,5 |
18 |
34 |
41 |
36 |
| 1005-25S-12 |
25 |
3/4 |
23 |
16 |
47 |
41 |
46 |
| 1005-25S-16 |
25 |
1 |
23 |
18 |
47 |
41 |
46 |
| 1005-28L-12 |
28 |
3/4 |
17,5 |
16 |
34 |
41 |
41 |
| 1005-28L-16 |
28 |
1 |
17,5 |
18 |
34 |
41 |
41 |
| 1005-30S-16 |
30 |
1 |
23,5 |
18 |
50 |
46 |
50 |
| 1005-30S-20 |
30 |
11/4 |
23,5 |
20 |
50 |
50 |
50 |
| 1005-35L-16 |
35 |
1 |
17,5 |
18 |
39 |
46 |
50 |
| 1005-35L-20 |
35 |
1 1/4 |
17,5 |
20 |
39 |
50 |
50 |
| 1005-38S-20 |
38 |
1 1/4 |
26 |
20 |
57 |
55 |
60 |
| 1005-38S-24 |
38 |
1 1/2 |
26 |
22 |
57 |
55 |
60 |
| 1005-42L-20 |
42 |
1 1/4 |
19 |
20 |
42 |
55 |
60 |
| 1005-42L-24 |
42 |
1 1/2 |
19 |
22 |
42 |
55 |
60 |
