1019 Series

DIN 2353 Metric Compression by Male Metric Tapered Thread Adapter

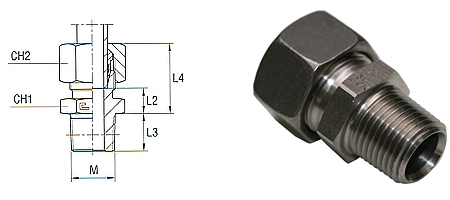

1019-Group-450Buy Here





HnF SKU TUBE (mm) M (mm) L2 (mm) L3 (mm) L4 (mm) CH1 (mm) CH2 (mm)
1019-06L-10X1 6 10×1 7 8 22 12 14
1019-06S-12X1.5 6 12×1,5 11 12 26 17 17
1019-08L-12X1.5 8 12×1,5 8 12 23 17 17
1019-08S-14X1.5 8 14×1,5 13 12 28 17 19
1019-10L-14X1.5 10 14×1,5 9 12 24 17 19
1019-10S-16X1.5 10 16×1,5 12,5 12 28,5 19 22
1019-12L-16X1.5 12 16×1,5 10 12 24,5 19 22
1019-12S-18X1.5 12 18×1,5 14,5 12 30,5 22 24
1019-14S-20X1.5 14 20×1,5 16 14 34 24 27
1019-15L-18X1.5 15 18×1,5 11 12 26 24 27
1019-16S-22X1.5 16 22×1,5 15,5 14 34 27 30
1019-18L-22X1.5 18 22×1,5 11,5 14 28 27 32
