HF10L43

Male BOSS 90º Swivel Hose End

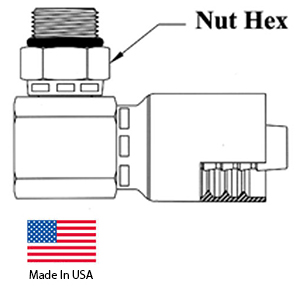

HF10L43 Dimensions

HnF Part Number Equilivant Manufacuturer & Part Number BOSS Size (inch) Thread Size Hose ID (inch) Hex Size (inch)
HF10L43-6-6 Parker 10L43-6-6 3/8 9/16-18 3/8 7/8
HF10L43-8-6 Parker 10L43-8-6 1/2 3/4-16 3/8 7/8
HF10L43-10-6 Parker 10L43-10-6 5/8 7/8-14 3/8 1
HF10L43-8-8 Parker 10L43-8-8 1/2 3/4-16 1/2 7/8
HF10L43-10-8 Parker 10L43-10-8 5/8 7/8-14 1/2 1
HF10L43-12-12 Parker 10L43-12-12 3/4 1 1/16-12 3/4 1-1/4
HF10L43-16-16 Parker 10L43-16-16 1 1 5/16-12 1 1-1/2
Note: Swivel for Installation Purpose Only.  Leakage May Occur at Low Pressure.
