HF1B243

Female BSPP 60° Cone Swivel 90° Hose End

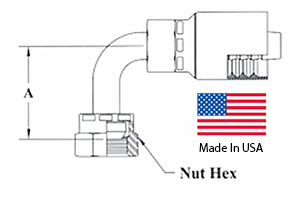

HF1B243 Dimensions

HnF Part Number Equilivant Manufacuturer & Part Number BSPP Size (inch) Thread Size Hose ID (inch) A-Drop (inch) Hex Nut (inch)
HF1B243-4-4 Parker 1B243-4-4 1/4 G1/4-19 1/4 1.50 3/4
HF1B243-6-6 Parker 1B243-6-6 3/8 G3/8-19 3/8 1.60 7/8
HF1B243-8-8 Parker 1B243-8-8 1/2 G1/2-14 1/2 1.89 1
HF1B243-10-10 1B243-10-10 5/8 G5/8-14 5/8 1.83 1-3/16
HF1B243-12-12 1B243-12-12 3/4 G3/4-14 3/4 2.55 1-1/4
HF1B243-16-16 1B243-16-16 1 G1-11 1 2.98 1-1/2
