3 Way 3 Port High Pressure Ball Valve

3PBVHP-WP

Quality:

  • Any Port May be Pressurized on the Series Valve (“True 3-Way Valve”)
  • Carbon Steel With Zinc Chromate Plating (RoHS Compliant)
  • POM Seats and Buna O-Rings Standard on Carbon Steel Valves
  • NPT Threads in Accordance with ANSI B 1.20.1 Specifications
  • SAE Threads in Accordance with SAE J1926-1 Specifications

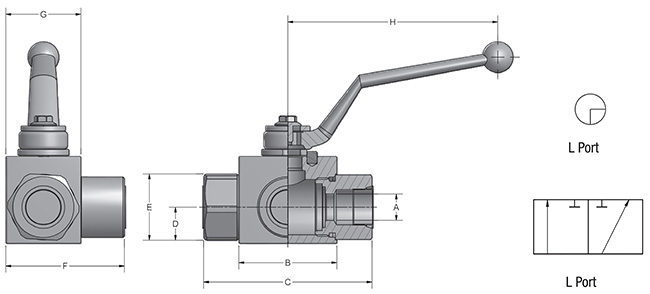

3.3PBVHP-DIMENSIONS



NPT SKU SAE SKU PSI MAX A BORE B C D E F G H
3PBVHP-04NPT 3PBVHP-04SAE 5800 0.24 1.67 2.80 0.57 1.38 1.91 1.18 4.33
3PBVHP-06NPT 3PBVHP-06SAE 5800 0.39 1.75 2.87 0.67 1.57 2.15 1.38 4.33
3PBVHP-08NPT 3PBVHP-08SAE 5075 0.51 1.91 3.27 0.71 1.69 2.30 1.46 4.33
3PBVHP-12NPT 3PBVHP-12SAE 5075 0.79 2.46 3.74 0.92 2.17 2.95 1.77 7.01
3PBVHP-16NPT 3PBVHP-16SAE 5075 0.98 2.62 4.41 1.16 2.56 3.44 2.17 7.01
