FREE ANGLE SWIVELS



 NFAN2F-N1M-200  NFAN2M-N2M  NFAB-200

Features

  • Two independent-rotation points allow a full 360° circular rotation and 45° angled rotation allows for better swivel
    action vs. traditional swivel fittings
  • Prevents kinking of and strain on the supply line
  • Helps alleviate carpal tunnel syndrome and back stress resulting in fewer lost-time injuries
  • Lightweight, streamlined design
  • Chrome-plated steel construction for long service life
  • Thread sealant is supplied on all male fittings

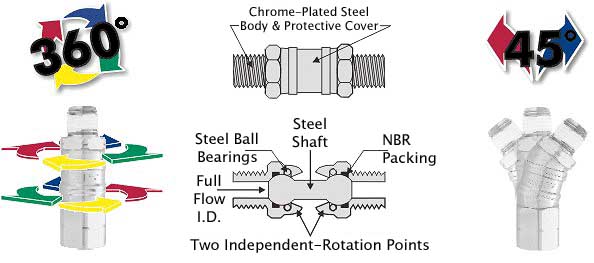

Pneumatic Swivel Diagram
Uses

  • Automotive Assembly Operations
  • Electronics Assembly Operations
  • Workstations
  • Commercial & Residential Construction
  • Robotic Joints
  • Automotive Repair Facilities
  • Paint & Body Shops



Specifications

  • Media………………………………….Air
  • Working Temperature Range…..20°F-140°F
  • Maximum Working Pressure……145 PSI
