Female DIN S Series Swivel 45° Hose End

100R16, 100R2-AT & 100R17

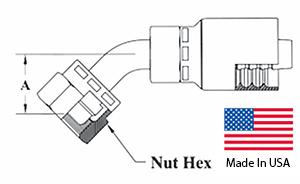

HF1C443 HF10C43 Dimensions

HnF Part Number Tube Size (mm) Thread Size Hose ID (inch) A-Drop (inch) Hex Nut (inch)
04 Hose – 10SFX45 10 M18x1.5 1/4 0.96 7/8
06 Hose – 12SFX45 12 M20x1.5 3/8 1.13 1
08 Hose – 16SFX45 16 M24x1.5 1/2 1.25 1-1/8
10 Hose – 20SFX45 20 M30x2.0 5/8 1.50 1-1/2
