Code 61 Split Flange 90° Angle Hose End

100R16, 100R2-AT, 100R17 & 100R12

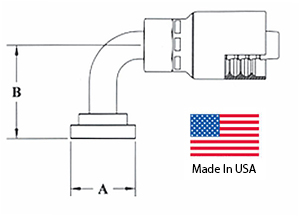

HF11943 Dimensions

HnF Part Number Flange Size (inch) Hose ID (inch) A Diameter (inches) B-Drop (inches)
08 Hose – 08FL90 1/2 1/2 1.62 0.78
08 Hose – 12FL90 3/4 1/2 1.68 0.82
12 Hose – 12FL90 3/4 3/4 2.12 1.00
12 Hose – 16FL90 1 3/4 2.12 1.00
16 Hose – 16FL90 1 1 2.38 1.12
16 Hose – 20FL90 1-1/4 1 2.38 1.12
20 Hose – 20FL90 1-1/4 1-1/4 2.62 1.15
20 Hose – 24FL90 1-1/2 1-1/4 3.25 1.50
24 Hose – 24FL90 1-1/2 1-1/2 3.12 1.41
32 Hose – 32FL90 2 2 4.64 2.08
