Code 61 Split Flange Hose End

100R16, 100R2-AT, 100R17 & 100R12

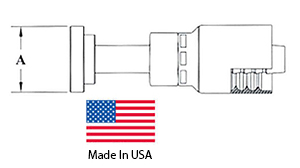

HF11543 Dimensions

HnF Part Number Flange Size (inch) Hose ID (inch) A Diameter (inches)
08 Hose – 08FL 1/2 1/2 1.19
08 Hose – 12FL 3/4 1/2 1.50
12 Hose – 12FL 3/4 3/4 1.50
12 Hose – 16FL 1 3/4 1.75
16 Hose – 16FL 1 1 1.75
16 Hose – 20FL 1-1/4 1 2.00
20 Hose – 20FL 1-1/4 1-1/4 2
20 Hose – 24FL 1-1/2 1-1/4 2.38
24 Hose – 24FL 1-1/2 1-1/2 2.38
32 Hose – 32FL 2 2 2.81
