Build A Hose

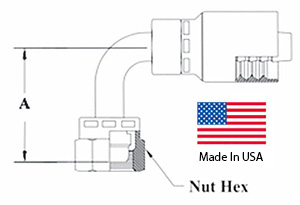

Female DIN L Series Swivel 90° Hose End

Hf1C543 HF1C43

HnF Part Number Tube Size (mm) Thread Size Hose ID (inch) A-Drop (inch) Hex Nut (inch)
04 Hose – LFX90 8 M14x1.5 1/4 1.48 11/16
04 Hose – 10LFX90 10 M16x1.5 1/4 1.65 3/4
06 Hose – 10LFX90 10 M16x1.5 3/8 1.65 3/4
06 Hose – 12LFX90 12 M18x1.5 3/8 1.65 7/8
08 Hose – 15LFX90 15 M22x1.5 1/2 1.93 1-1/16
10 Hose – 18LFX90 18 M26x1.5 5/8 2.31 1-1/4
12 Hose – 22LFX90 22 M30x2.0 3/4 2.59 1-1/2
