Female JIC Swivel 45º Angle Hose End

100R16, 100R2-AT, 100R17 & 100R12

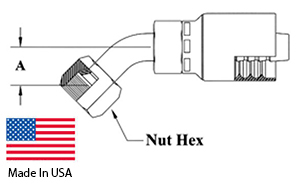

HF13743 Dimensions

HnF Part Number JIC Size (inch) Thread Size Hose ID (inch) A-Drop (inch) Hex Nut (inch)
04 Hose – 04FJX45 1/4 7/16-20 1/4 0.47 9/16
04 Hose – 05FJX45 5/16 1/2-20 1/4 0.53 5/8
04 Hose – 06FJX45 3/8 9/16-18 1/4 0.59 11/16
06 Hose – 04FJX45 1/4 7/16-20 3/8 0.47 9/16
06 Hose – 05FJX45 5/16 1/2-20 3/8 0.53 5/8
06 Hose – 06FJX45 3/8 9/16-18 3/8 0.59 11/16
06 Hose – 08FJX45 1/2 3/4-16 3/8 0.71 7/8
08 Hose – 08FJX45 1/2 3/4-16 1/2 0.71 7/8
08 Hose – 10FJX45 5/8 7/8-14 1/2 0.84 1
10 Hose – 10FJX45 5/8 7/8-14 5/8 0.68 1
10 Hose – 12FJX45 3/4 1 1/16-12 5/8 0.78 1-1/4
12 Hose – 12FJX45 3/4 1 1/16-12 3/4 1.12 1-1/4
12 Hose – 16FJX45 1 1 5/16-12 3/4 1.15 1-1/2
16 Hose – 16FJX45 1 1 5/16-12 1 1.15 1-1/2
20 Hose – 20FJX45 1-1/4 1 5/8-12 1-1/4 1.69 2
24 Hose – 24FJX45 1-1/2 1 7/8-12 1-1/2 1.70 2-1/4
