Female JIC Swivel 90° Medium Drop Hose End

100R16, 100R2-AT & 100R17

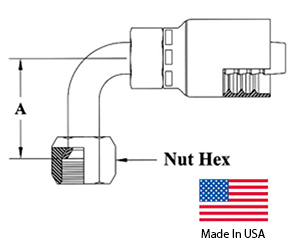

HF1L943 Dimensions

HnF Part Number JIC Size (inch) Thread Size Hose ID (inch) A-Drop (inch) Hex Nut (inch)
04 Hose – 04FJX90M 1/4 7/16-20 1/4 1.26 9/16
06 Hose – 06FJX90M 3/8 9/16-18 3/8 1.50 11/16
08 Hose – 08FJX90M 1/2 3/4-16 1/2 1.63 7/8
12 Hose – 12FJX90M 3/4 1 1/16-12 3/4 2.28 1-1/4
16 Hose – 16FJX90M 1 1 5/16-12 1 2.79 1-1/2
