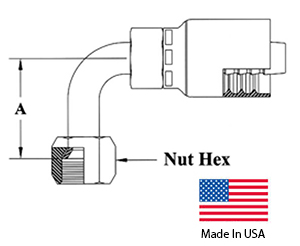

Female JIC Swivel 90° Hose End
100R16, 100R2-AT, 100R17 & 100R12
| HnF Part Number | JIC Size (inch) | Thread Size | Hose ID (inch) | A-Drop (inch) | Hex Nut (inch) |
| 04 Hose 04FJX90 | 1/4 | 7/16-20 | 1/4 | 0.81 | 9/16 |
| 04 Hose – 05FJX90 | 5/16 | 1/2-20 | 1/4 | 0.83 | 5/8 |
| 04 Hose – 06FJX90 | 3/8 | 9/16-18 | 1/4 | 0.91 | 11/16 |
| 06 Hose – 04FJX90 | 1/4 | 7/16-20 | 3/8 | 0.81 | 9/16 |
| 06 Hose – 05FJX90 | 5/16 | 1/2-20 | 3/8 | 0.83 | 5/8 |
| 06 Hose – 06FJX90 | 3/8 | 9/16-18 | 3/8 | 0.91 | 11/16 |
| 06 Hose – 08FJX90 | 1/2 | 3/4-16 | 3/8 | 1.15 | 7/8 |
| 08 Hose – 08FJX90 | 1/2 | 3/4-16 | 1/2 | 1.15 | 7/8 |
| 08 Hose – 10FJX90 | 5/8 | 7/8-14 | 1/2 | 1.23 | 1 |
| 10 Hose – 10FJX90 | 5/8 | 7/8-14 | 5/8 | 1.23 | 1 |
| 10 Hose – 12FJX90 | 3/4 | 1 1/16-12 | 5/8 | 1.88 | 1-1/4 |
| 12 Hose – 10FJX90 | 5/8 | 7/8-14 | 3/4 | 1.23 | 1 |
| 12 Hose – 12FJX90 | 3/4 | 1 1/16-12 | 3/4 | 1.88 | 1-1/4 |
| 12 Hose – 16FJX90 | 1 | 1 5/16-12 | 3/4 | 2.20 | 1-1/2 |
| 16 Hose – 16FJX90 | 1 | 1 5/16-12 | 1 | 2.20 | 1-1/2 |
| 20 Hose – 20FJX90 | 1-1/4 | 1-5/8-12 | 1-1/4 | 3.31 | 2 |
| 24 Hose – 24FJX90 | 1-1/2 | 1 7/8-12 | 1-1/2 | 3.95 | 2-1/4 |
| 32 Hose – 32FJX90 | 2 | 2 1/2-12 | 2 | 4.64 | 2-7/8 |
