Female JIC Swivel Hose End

100R16, 100R2-AT, 100R17 & 100R12

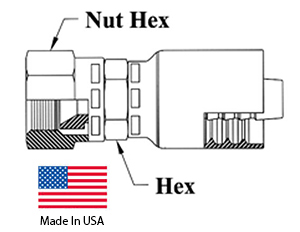

HF10643 Dimensions

HnF Part Number JIC Size (inch) Thread Size Hose ID (inch) Hex Size (inch) Hex Nut (inch)
04 Hose – 04FJX 1/4 7/16-20 1/4 9/16 9/16
04 Hose – 05FJX 5/16 1/2-20 1/4 9/16 5/8
04 Hose – 06FJX 3/8 9/16-18 1/4 9/16 11/16
06 Hose – 04FJX 1/4 7/16-20 3/8 11/16 9/16
06 Hose – 06FJX 3/8 9/16-18 3/8 11/16 11/16
06 Hose – 08FJX 1/2 3/4-16 3/8 11/16 7/8
06 Hose – 10FJX 5/8 7/8-14 3/8 7/8 1
06 Hose – 12FJX 3/4 1 1/16-12 3/4 1 1-1/4
08 Hose – 06FJX 3/8 9/16-18 1/2 7/8 11/16
08 Hose – 08FJX 1/2 3/4-16 1/2 7/8 7/8
08 Hose – 10FJX 5/8 7/8-14 1/2 7/8 1
08 Hose – 12FJX 3/4 1 1/16-12 1/2 1-1/8 1-1/4
08 Hose – 16FJX 1 1 5/16-12 1/2 1-1/4 1-1/2
10 Hose – 08FJX 1/2 3/4-16 5/8 15/16 7/8
10 Hose – 10FJX 5/8 7/8-14 5/8 15/16 1
10 Hose – 12FJX 3/4 1 1/16-12 5/8 1-1/8 1-1/4
12 Hose – 10FJX 5/8 7/8-14 3/4 1-1/8 1
12 Hose – 12FJX 3/4 1 1/16-12 3/4 1-1/8 1-1/4
12 Hose – 14FJX 7/8 1 3/16-12 3/4 1-3/8 1-1/2
12 Hose – 16FJX 1 1 5/16-12 3/4 1-3/8 1-1/2
16 Hose – 12FJX 3/4 1 1/16-12 1 1-3/8 1-1/4
16 Hose – 16FJX 1 1 5/16-12 1 1-3/8 1-1/2
16 Hose – 20FJX 1-1/4 1 5/8-12 1 1-11/16 2
20 Hose – 20FJX 1-1/4 1 5/8-12 1-1/4 1-11/16 2
20 Hose – 24FJX 1-1/2 1 7/8-12 1-1/4 1-7/8 2-1/4
24 Hose – 24FJX 1-1/2 1 7/8-12 1-1/2 2-1/8 2-1/4
32 Hose – 32FJX 2 2 1/2-12 2 2-3/4 2-7/8
