Female JIS 30° Seat Swivel Hose End

100R16, 100R2-AT & 100R17

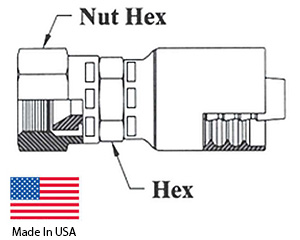

HF1FU43 Dimensions

HnF Part Number Tube Size (inch) Thread Size Hose ID (inch) Hex Size (inch) Hex Nut (inch)
04 Hose – 04FJISX 1/4 G1/4-19 1/4 5/8 3/4
06 Hose – 06FJISX 3/8 G3/8-19 3/8 11/16 7/8
08 Hose – 08FJISX 1/2 G1/2-14 1/2 7/8 1-1/16
12 Hose – 12FJISX 3/4 G3/4-14 3/4 1-1/8 1-1/4
16 Hose – 16FJISX 1 G1-11 1 1-3/8 1-1/2
