Female O-Ring Face Seal Swivel 90°

Long Drop Hose End

100R16, 100R2-AT, 100R17 & 100R12

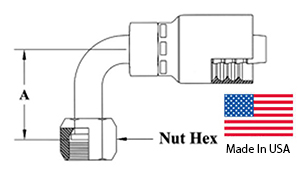

HF1J143 Dimensions

HnF Part Number Tube Size (inch) Thread Size Hose ID (inch) A-Drop (inch) Hex Nut (inch)
04 Hose – 04FFSX90L 1/4 9/16-18 1/4 1.80 11/16
04 Hose – 06FFSX90L 3/8 11/16-16 1/4 2.13 13/16
06 Hose – 06FFSX90L 3/8 11/16-16 3/8 2.13 13/16
06 Hose – 08FFSX90L 1/2 13/16-16 3/8 2.51 15/16
08 Hose – 08FFSX90L 1/2 13/16-16 1/2 2.51 15/16
08 Hose – 10FFSX90L 5/8 1-14 1/2 2.76 1-1/8
10 Hose – 10FFSX90L 5/8 1-14 5/8 2.76 1-1/8
12 Hose – 12FFSX90L 3/4 1 3/16-12 3/4 3.78 1-3/8
16 Hose – 16FFSX90L 1 1 7/16-12 1 4.50 1-5/8
