Female SAE 45° Seat Swivel Hose End

100R16, 100R2-AT & 100R17

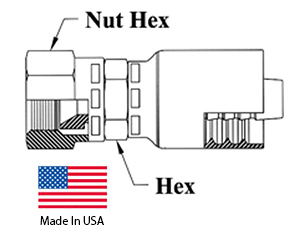

HF10843 Dimensions

HnF Part Number SAE Size (inch) Thread Size Hose ID (inch) Hex Size (inch) Hex Nut (inch)
04 Hose – 06FSX 3/8 5/8-18 1/4 11/16 3/4
06 Hose – 06FSX 3/8 5/8-16 3/8 3/4 13/16
12 Hose – 12FSX 3/4 1 1/16-14 3/4 1-1/8 1-1/4
