Fractional Standpipe Hose End

100R16, 100R2-AT & 100R17

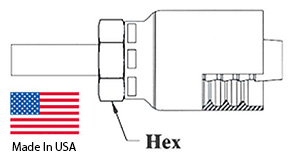

Standpipe Dimensions

HnF Part Number Tube Size (inch) Tube Rise (inch) Hose ID (inch) Hex Size (inch)
04 Hose – 04SP 1/4 1.10 1/4 5/8
06 Hose – 06SP 3/8 1.30 3/8 3/4
08 Hose – 08SP 1/2 1.58 1/2 7/8
10 Hose – 10SP 5/8 1.34 5/8 1
12 Hose – 12SP 3/4 1.17 3/4 1-1/8
16 Hose – 16SP 1 1.30 1 1-3/8
