Build A Hose

Male BSPT Hose End

100R16, 100R2-AT & 100R17

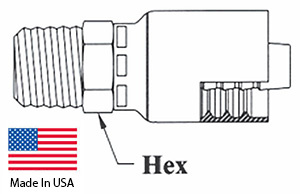

HF1UT43 Dimensions

HnF Part Number BSPT Size (inch) Thread Size Hose ID (inch) Hex Size (inch)
04 Hose – 04MBST 1/4 R1/4-19 1/4 5/8
06 Hose – 06MBST 3/8 R3/8-19 3/8 3/4
08 Hose – 08MBST 1/2 R1/2-14 1/2 7/8
12 Hose – 12MBST 3/4 R3/4-14 3/4 1-1/8
