Male DIN S Series Hose End

100R16, 100R2-AT & 100R17

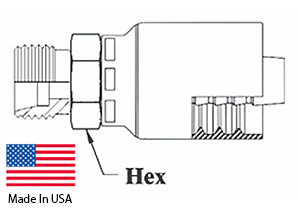

HF1D043 Dimensions

HnF Part Number Tube Size (mm) Thread Size Hose ID (inch) Hex Size (inch)
04 Hose – 08SM 8 M16x1.5 1/4 5/8
04 Hose – 10SM 10 M18x1.5 1/4 11/16
06 Hose – 10SM 10 M18x1.5 3/8 3/4
06 Hose – 12SM 12 M20x1.5 3/8 13/16
06 Hose – 14SM 14 M22x1.5 3/8 7/8
08 Hose – 16SM 16 M24x1.5 1/2 7/8
10 Hose – 20SM 20 M30x2.0 5/8 1-1/4
