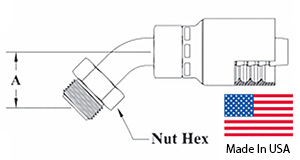

Male Inverted Flare Swivel 45° Angle Hose End
100R16, 100R2-AT & 100R17

HnF Part Number |
Tube Size (inch) |
Thread Size |
Hose ID (inch) |
A-Drop |
Hex Nut (inch) |
04 Hose – 03INV45 |
3/16 |
3/8-24 |
1/4 |
0.69 |
3/8 |
04 Hose – 04INV45 |
1/4 |
7/16-24 |
1/4 |
1.08 |
7/16 |
04 Hose – 05INV45 |
5/16 |
1/2-20 |
1/4 |
1.10 |
1/2 |
06 Hose – 1/4INV45 |
1/4 |
7/16-24 |
3/8 |
0.93 |
7/16 |
06 Hose – 05INV45 |
5/16 |
1/2-20 |
3/8 |
1.10 |
1/2 |
06 Hose – 06INV45 |
3/8 |
5/8-18 |
3/8 |
1.03 |
5/8 |
06 Hose – 07INV45 |
7/16 |
11/16-18 |
3/8 |
1.34 |
11/16 |
08 Hose – 08INV45 |
1/2 |
3/4-18 |
1/2 |
1.13 |
3/4 |
