Build A Hose

Male JIC 37° Seat Hose End

100R16, 100R2-AT, 100R17 & 100R12

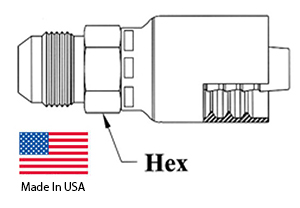

HF10343 Dimensions

HnF Build A Hose Part Number Tube OD (inch) Thread Size Hose ID (inch) Hex Size (inch)
04 Hose – 04MJ 1/4 7/16-20 1/4 9/16
04 Hose – 05MJ 5/16 1/2-20 1/4 9/16
04 Hose – 06MJ 3/8 9/16-18 1/4 5/8
06 Hose – 06MJ 3/8 9/16-18 3/8 11/16
06 Hose – 08MJ 1/2 3/4-16 3/8 3/4
06 Hose – 10MJ 5/8 7/8-14 3/8 7/8
08 Hose – 08MJ 1/2 3/4-16 1/2 7/8
08 Hose – 10MJ 5/8 7/8-14 1/2 7/8
08 Hose – 12MJ 3/4 1 1/16-12 1/2 1-1/8
10 Hose – 08MJ 1/2 3/4-16 5/8 15/16
10 Hose – 10MJ 5/8 7/8-14 5/8 15/16
10 Hose – 12MJ 3/4 1 1/16-12 5/8 1-1/8
12 Hose – 10MJ 5/8 7/8-14 3/4 1-1/8
12 Hose – 12MJ 3/4 1 1/16-12 3/4 1-1/8
12 Hose – 14MJ 7/8 1 3/16-12 3/4 1-3/8
12 Hose – 16MJ 1 1 5/16-12 3/4 1-3/8
16 Hose – 14MJ 7/8 1 3/16-12 1 1-3/8
16 Hose – 16MJ 1 1 5/16-12 1 1-3/8
20 Hose – 20MJ 1-1/4 1 5/8-12 1-1/4 1-11/16
