Male O-Ring Face Seal Hose End

100R16, 100R2-AT, 100R17 & 100R12

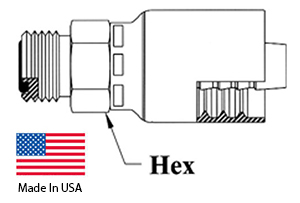

HF1J043 Dimensions

HnF Part Number Tube OD (inch) Thread Size Hose ID (inch) Hex Size (inch)
04 Hose – 04MFS 1/4 9/16-18 1/4 5/8
06 Hose – 06MFS 3/8 11/16-16 3/8 3/4
06 Hose – 08MFS 1/2 13/16-16 3/8 7/8
08 Hose – 08MFS 1/2 13/16-16 1/2 7/8
08 Hose – 10MFS 5/8 1-14 1/2 1-1/16
08 Hose – 12MFS 3/4 1 3/16-12 1/2 1-1/4
10 Hose – 10MFS 5/8 1-14 5/8 1-1/16
10 Hose – 12MFS 3/4 1 3/16-12 5/8 1-1/4
12 Hose – 12MFS 3/4 1 3/16-12 3/4 1-1/4
16 Hose – 16MFS 1 1 7/16-12 1 1-1/2
