Code 61 Split Flange 30° Angle Hose End

100R12

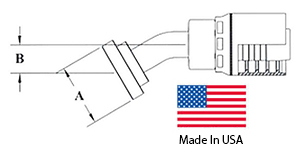

HF126 Dimensions

HnF Part Number Flange Size (inch) Hose ID (inch) A Diameter (inch) B-Drop (inch)
12 Hose – 12FL30 3/4 3/4 1.50 0.59
16 Hose – 16FL30 1 1 1.75 0.64
20 Hose – 20FL30 1-1/4 1-1/4 2.00 0.72
