Code 61 Split Flange 60° Angle Hose End

100R12

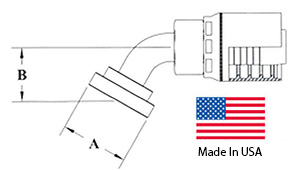

HF127 Dimensions

HnF Part Number Flange Size (inch) Hose ID (inch) A Diameter (inch) B-Drop (inch)
12 Hose – 12FL60 3/4 3/4 1.50 1.38
12 Hose – 16FL60 1 3/4 1.75 1.38
16 Hose – 16FL60 1 1 1.75 1.51
16 Hose – 20FL60 1-1/4 1 2.00 1.51
20 Hose – 20FL60 1-1/4 1-1/4 2.00 1.69
