Code 61 Split Flange 67-1/2° Angle Hose End

100R12

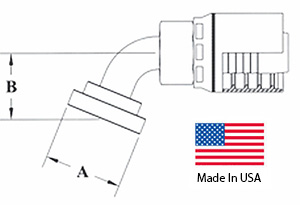

HF118 Dimensions

HnF Part Number Flange Size (inch) Hose ID (inch) A Diameter (inch) B-Drop (inch)
12 Hose – 12FL67.5 3/4 3/4 1.50 1.59
12 Hose – 16FL67.5 1 3/4 1.75 1.59
16 Hose – 16FL67.5 1 1 1.75 1.76
16 Hose – 20FL67.5 1-1/4 1 2.00 1.76
20 Hose – 20FL67.5 1-1/4 1-1/4 2.00
