Code 62 Split Flange 45° Angle Hose End

100R12

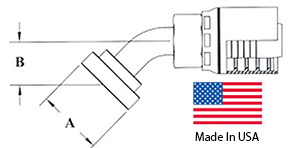

HF16F Dimensions

HnF Part Number Flange Size (inch) Hose ID (inch) A Diameter (inch) B-Drop (inch)
12 Hose – 12FLH45 3/4 3/4 1.62 1.27
12 Hose – 16FLH45 1 3/4 1.88 1.29
16 Hose – 16FLH45 1 1 1.88 1.34
20 Hose – 20FLH45 1-1/4 1-1/4 2.12 1.68
