Female JIC 37° Seat Swivel Hose End

100R14

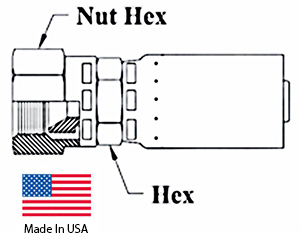

E Series Female JIC Swivel Hose End

HnF Part Number Tube Size (inch) Thread Size Hose ID (inch) Hex Size (inch) Hex Nut (inch)
03 Hose – 04FJX 1/4 7/16-20 3/16 1/2 9/16
04 Hose – 04FJX 1/4 7/16-20 1/4 1/2 9/16
04 Hose – 05FJX 5/16 1/2-20 1/4 1/2 5/8
04 Hose – 06FJX 3/8 9/16-18 1/4 9/16 11/16
05 Hose – 05FJX 5/16 1/2-20 5/16 1/2 5/8
05 Hose – 06FJX 3/8 9/16-18 5/16 9/16 11/16
06 Hose – 06FJX 3/8 9/16-18 3/8 9/16 11/16
06 Hose – 08FJX 1/2 3/4-16 3/8 3/4 7/8
08 Hose – 08FJX 1/2 3/4-16 1/2 3/4 7/8
08 Hose – 10FJX 5/8 7/8-14 1/2 7/8 1
12 Hose – 12FJX 3/4 1 1/16-12 3/4 1 1-1/4
16 Hose – 16FJX 1 1 5/16-12 1 1-1/4 1-1/2
