Female O-Ring Face Seal Swivel 45° Hose End

100R14

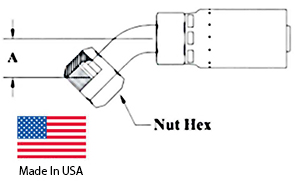

E Series Female O-Ring Face Seal 45 Degree Angle Swivel Hose End

HnF Part Number Tube Size (inch) Thread Size Hose ID (inch) A-Drop (inch) Hex Nut (inch)
04 Hose – 04FFSX45 1/4 9/16-18 1/4 0.41 11/16
05 Hose – 06FFSX45 3/8 11/16-16 5/16 0.43 13/16
06 Hose – 06FFSX45 3/8 11/16-16 3/8 0.43 13/16
08 Hose – 08FFSX45 1/2 13/16-16 1/2 0.60 15/16
12 Hose – 12FFSX45 3/4 1 3/16-12 3/4 0.83 1-3/8
16 Hose – 16FFSX45 1 1 7/16-12 1 1.15 1-5/8
