Build A Hose

Female O-Ring Face Seal Swivel Hose Ends

100R14

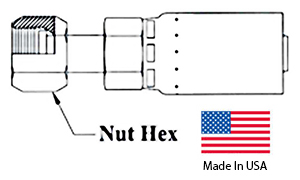

E Series Female O-Ring Face Seal Swivel Hose End

HnF Part Number Tube Size (inch) Thread Size Hose ID (inch) Hex Size (inch)
04 Hose – 04FFSX 1/4 9/16-18 1/4 11/16
04 Hose – 06FFSX 3/8 11/16-16 1/4 13/16
05 Hose – 06FFSX 3/8 11/16-16 5/16 13/16
06 Hose – 06FFSX 3/8 11/16-16 3/8 13/16
06 Hose – 08FFSX 1/2 13/16-16 3/8 15/16
08 Hose – 08FFSX 1/2 13/16-16 1/2 15/16
08 Hose – 10FFSX 5/8 1-14 1/2 1-1/8
12 Hose – 12FFSX 3/4 1 3/16-12 3/4 1-3/8
16 Hose – 16FFSX 1 1 7/16-12 1 1-5/8
