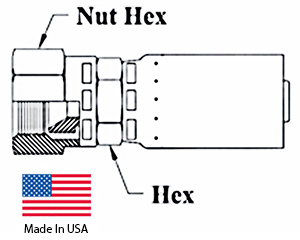

Female JIC Swivel Hose End

100R5

HnF Part Number	Tube Size (inch)	Thread Size	Hose ID (inch)	Hex Size (inch)	Hex Nut (inch)
04 Hose – 04FJX	1/4	7/16-20	3/16	9/16	9/16
05 Hose – 05FJX	5/16	1/2-20	1/4	9/16	5/8
06 Hose – 06FJX	3/8	9/16-20	5/16	11/16	11/16
06 Hose – 08FJX	1/2	3/4-16	5/16	3/4	7/8
08 Hose – 08FJX	1/2	3/4-16	13/32	3/4	7/8
10 Hose – 08FJX	1/2	3/4-16	1/2	7/8	7/8
10 Hose – 10FJX	5/8	7/8-14	1/2	7/8	1
12 Hose – 12FJX	3/4	1 1/16-12	5/8	1	1-1/4
16 Hose – 16FJX	1	1 5/16-12	7/8	1-1/4	1-1/2
20 Hose – 20FJX	1-1/4	1 5/8-12	1-1/8	1-5/8	2
24 Hose – 24FJX	1-1/2	1 7/8-12	1-3/8	2	2-1/4
32 Hose – 32FJX	2	2 1/2-12	1-13/16	2-1/2	2-7/8
