Female JIC Swivel 90° Long Drop Hose End

100R7 & 100R8

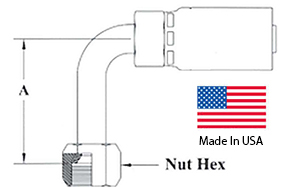

R7-R8-FJX90L Specifications

HnF Part Number Tube Size (inch) Thread Size Hose ID (inch) A-Drop (inch) Hex Nut (inch)
04 Hose – 05FJX90L 5/16 1/2-20 1/4 1.77 5/8
06 Hose – 06FJX90L 3/8 9/16-18 3/8 2.18 11/16
06 Hose – 08FJX90L 1/2 3/4-16 3/8 2.50 7/8
08 Hose – 08FJX90L 1/2 3/4-16 1/2 2.50 7/8
08 Hose – 10FJX90L 5/8 7/8-14 1/2 2.75 1
