Female JIC Swivel 90° Angle Hose End

100R7 & 100R8

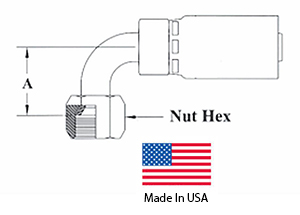

R7-R8-FJX90 Specifications

HnF Part Number Tube Size (inch) Thread Size Hose ID (inch) A-Drop (inch) Hex Nut (inch)
03 Hose – 04FJX90 1/4 7/16-20 3/16 0.81 9/16
04 Hose – 04FJX90 1/4 7/16-20 1/4 0.81 9/16
04 Hose – 05FJX90 5/16 1/2-20 1/4 0.83 5/8
04 Hose – 06FJX90 3/8 9/16-18 1/4 0.91 11/16
05 Hose – 06FJX90 3/8 9/16-18 5/16 0.91 11/16
06 Hose – 06FJX90 3/8 9/16-18 3/8 0.91 11/16
06 Hose – 08FJX90 1/2 3/4-16 3/8 1.15 7/8
08 Hose – 08FJX90 1/2 3/4-16 1/2 1.15 7/8
08 Hose – 10FJX90 5/8 7/8-14 1/2 1.23 1
