Female O-Ring Face Seal Swivel 45° Hose End

100R7 & 100R8

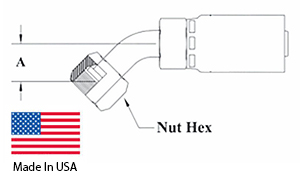

R7-R8-FFSX45 Specifications

HnF Part Number Tube Size (inch) Thread Size Hose ID (inch) A-Drop (inch) Hex Nut (inch)
04 Hose – 04FFSX45 1/4 9/16-18 1/4 0.40 11/16
06 Hose – 06FFSX45 3/8 11/16-16 3/8 0.44 13/16
08 Hose – 08FFSX45 1/2 13/16-16 1/2   15/16
