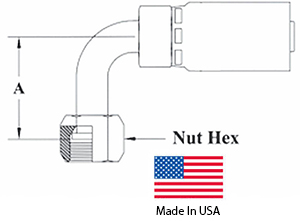

Female O-Ring Face Seal Swivel 90° Hose End

100R7 & 100R8

R7-R8-FFSX90

HnF Part Number Tube Size (inch) Thread Size Hose ID (inch) A-Drop (inch) Hex Nut (inch)
04 Hose – 04FFSX90 1/4 9/16-18 1/4 0.78 11/16
05 Hose – 06FFSX90 3/8 11/16-16 5/16 0.90 13/16
06 Hose – 06FFSX90 3/8 11/16-16 3/8 0.90 13/16
08 Hose – 08FFSX90 1/2 13/16-16 1/2 1.15 15/16
