Male JIC 37° Seat Hose End

100R7 & 100R8

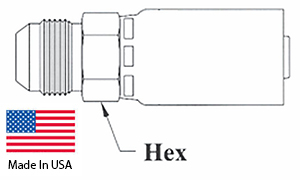

R7-R8-MJ Specifications

HnF Part Number Tube Size (inch) Thread Size Hose ID (inch) Hex Size (inch)
03 Hose – 04MJ 1/4 7/16-20 3/16 9/16
04 Hose – 04MJ 1/4 7/16-20 1/4 5/8
04 Hose – 05MJ 5/16 1/2-20 1/4 5/8
04 Hose – 06MJ 3/8 9/16-18 1/4 3/4
05 Hose – 06MJ 3/8 9/16-18 5/16 11/16
06 Hose – 06MJ 3/8 9/16-18 3/8 3/4
06 Hose – 08MJ 1/2 3/4-16 3/8 13/16
08 Hose – 08MJ 1/2 3/4-16 1/2 7/8
08 Hose – 10MJ 5/8 7/8-14 1/2 15/16
