Male Pipe Swivel Hose End

100R7 & 100R8

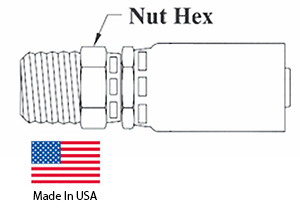

R7-R8-MPX Specifications

HnF Part Number Pipe Size (inch) Thread Size Hose ID (inch) Hex Size (inch)
03 Hose – 04MPX 1/4 1/4-18 3/16 11/16
04 Hose – 04MPX 1/4 1/4-18 1/4 11/16
06 Hose – 06MPX 3/8 3/8-18 3/8 3/4
08 Hose – 08MPX 1/2 1/2-14 1/2 15/16

Note: Swivel For Installation Purpose Only.  Leakage May Occur at Low Pressure.
