Standard Beta Clamps with Aluminum Cushion



BETA Std Aluminum-200-BOX



  • Aluminum Cushions are used in Higher Heat Applications up to 500°F
  • Recommended for Systems with Less than 1500 psi without Dynamic Loads
  • Use for Standard Hydraulics, General Pipe Construction, Electrical Cables, and General Duty Piping Applications Subject to Moderate Levels of Shock and Vibration



Clamp Installation Instructions

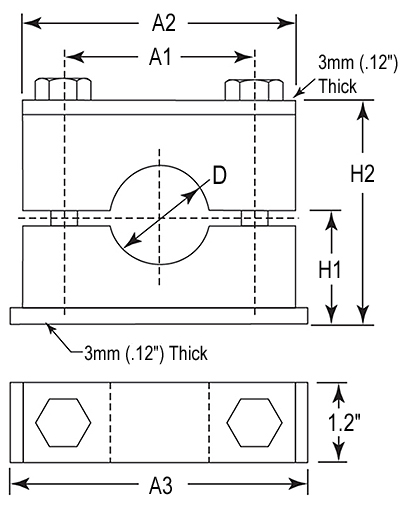

Diagram


D Group Tube* Pipe* Metric* Dimensions – inch (mm) Bolt
A1 A2 A3 H1 H2
0.250 1 1/4″ 0.78
(20)
1.34
(34)
1.41
(36)
0.62
(16)
1.25
(32)
1/4″-20
x 1-1/4″
0.375 3/8″
0.405 1/8″
0.500 2 1/2″ 1.02
(26)
1.57
(40)
1.65
(42)
0.76
(19.5)
1.54
(39)
1/4″-20
x 1-3/8″
0.540 1/4″
0.625 5/8″
0.675 3/8″
0.750 3 3/4″ 1.29
(36)
1.96
(50)
2.04
(52)
0.80
(20.5)
1.61
(41)
1/4″-20
x 1-1/2″
0.840 1/2″
0.875 7/8″
1.000 1″
1.000 1″
1.050 4 3/4″ 1.57
(40)
2.28
(58)
2.36
(60)
0.94
(24)
1.88
(48)
1/4″-20
x 1-3/4″
1.125 1-1/8″

1.250 5 1-1/4″ 2.04
(52)
2.75
(70)
2.83
(72)
1.25
(32)
2.52
(64)
1/4″-20
x 2-1/2″
1.315 1″
1.500 1-1/2
1.660 1-1/4″
1.750 6 1-3/4″ 2.59
(66)
3.38
(86)
3.46
(88)
1.41
(36)
2.83
(72)
1/4″-20
x 2-3/4″
1.900 1-1/2″
2.000 2″
  7 3.70
(94)
4.75
(121)
4.81
(122)
2.00
(51)
4.05
(103)
1/4″-20
x 4″

*Standard Clamp Assemblies with Steel Hardware & Aluminum Cushions
