Female JIC Swivel 90° Block Style Hose End

100R16, 100R2-AT & 100R17

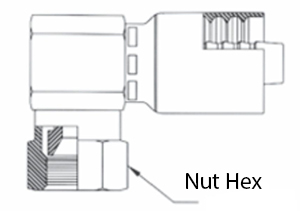

FJX90B Dimensioons

HnF Part Number JIC Size (inch) Thread Size Hose ID (inch) Hex Nut (inch)
04 Hose – 04FJX90B 1/4 7/16-20 1/4 9/16
04 Hose – 06FJX90B 3/8 9/16-18 1/4 11/16
06 Hose – 06FJX90B 3/8 9/16-18 3/8 11/16
06 Hose – 08FJX90B 1/2 3/4-16 3/8 7/8
08 Hose – 08FJX90B 1/2 3/4-16 1/2 7/8
08 Hose – 10FJX90B 5/8 7/8-15 1/2 1
12 Hose – 12FJX90B 3/4 1 1/16-12 3/4 1-1/4
16 Hose – 16FJX90B 1 1 5/16-12 1 1-1/2
