Female O-Ring Face Seal Swivel 90°

Medium Drop Hose End

100R16, 100R2-AT & 100R17

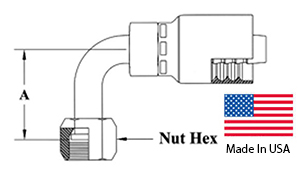

HF1J543 Dimensions

HnF Part Number Tube Size (inch) Thread Size Hose ID (inch) A-Drop (inch) Hex Nut (inch)
04 Hose – 04FFSX90M 1/4 9/16-18 1/4 1.26 11/16
06 Hose – 06FFSX90M 3/8 11/16-16 3/8 1.51 13/16
06 Hose – 08FFSX90M 1/2 13/16-16 3/8 1.62 15/16
08 Hose – 06FFSX90M 3/8 11/16-16 1/2 1.51 13/16
08 Hose – 08FFSX90M 1/2 13/16-16 1/2 1.62 15/16
12 Hose – 12FFSX90M 3/4 1 3/16-12 3/4 2.28 1-3/8
16 Hose – 16FFSX90M 1 1 7/16-12 1 2.78 1-5/8
