Fractional Compression Hose End

100R16, 100R2-AT & 100R17

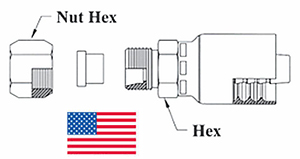

HF11143 Dimensions

HnF Part Number Tube Size (inch) Thread Size Hose ID (inch) Hex Size (inch) Hex Nut (inch)
04 Hose – 04COMP 1/4 7/16-20 1/4 9/16 9/16
04 Hose – 05COMP 5/16 1/2-20 1/4 9/16 5/8
06 Hose – 05COMP 5/16 1/2-20 3/8 11/16 5/8
06 Hose – 06COMP 3/8 9/16-18 3/8 11/16 11/16
06 Hose – 08COMP 1/2 3/4-16 3/8 3/4 7/8
08 Hose – 08COMP 1/2 3/4-16 1/2 7/8 7/8
08 Hose – 10COMP 5/8 7/8-14 1/2 7/8 15/16
12 Hose – 12COMP 3/4 1 1/16-12 3/4 1-1/8 1-1/4
16 Hose – 16COMP 1 1 5/16-12 1 1-3/8 1-1/2
