Male BOSS Hose End

100R16, 100R2-AT, 100R17 & 100R12

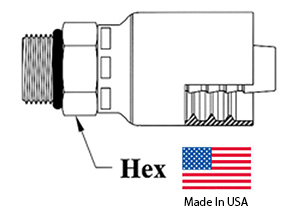

HF10543 Dimensions

HnF Part Number BOSS Size (inch) Thread Size Hose ID (inch) Hex Size (inch)
04 Hose – 04MB 1/4 7/16-20 1/4 9/16
04 Hose – 05MB 5/16 1/2-20 1/4 5/8
04 Hose – 06MB 3/8 9/16-18 1/4 11/16
06 Hose – 06MB 3/8 9/16-18 3/8 11/16
06 Hose – 08MB 1/2 3/4-16 3/8 7/8
06 Hose – 10MB 5/8 7/8-14 3/8 1
08 Hose – 08MB 1/2 3/4-16 1/2 7/8
08 Hose – 10MB 5/8 7/8-14 1/2 1
08 Hose – 12MB 3/4 1 1/16-12 1/2 1-1/4
10 Hose – 08MB 1/2 3/4-16 5/8 15/16
10 Hose – 10MB 5/8 7/8-14 5/8 1
10 Hose – 12MB 3/4 1 1/16-12 5/8 1-1/4
12 Hose – 10MB 5/8 7/8-14 3/4 1-1/8
12 Hose – 12MB 3/4 1 1/16-12 3/4 1-1/4
16 Hose – 16MB 1 1 5/16-12 1 1-1/2
