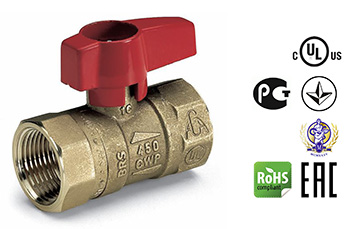

Gas Rated Ball Valve

BV195-WP

Quality:

  • 24 hour 100% Seal Test Guaranteed
  • Dual Sealing System Allows Valve to be Operated in Either Direction Making Installation Easier
  • No Metal-to-Metal Moving Parts
  • No Maintenance Ever Required
  • Handle Clearly Shows Ball Position
  • Silicone-Free Lubricant on all Seals
  • Chrome Plated Brass Ball for Longer Life
  • Travel Stops on Body to Avoid Stresses at Stem



Body:

  • Hot Forged Sand Blasted, Unplated Brass Body and Cap Sealed with Loctite® or Equivalent Thread Sealant
  • Finest Brass According to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) Specifications



Stem:

  • Blow-Out Proof Nickel Plated Brass Stem
  • Two FPM O-Rings at the Stem for Maximum Safety



Seals:

  • Pure PTFE Self-Lubricating Seats with FLexible-Lip Design



Threads:

  • NPT Taper ANSI B. 1.20.1 Female by Female Threads



Flow:

  • Standard Port for Compact Design



Handle:

  • Aluminum Wedge Handle Enameled Red



Working Pressure:

  • 450 psi
  • Non-Shocking COld Working Pressure



Working Temperature:

  • -40° F to +350° F

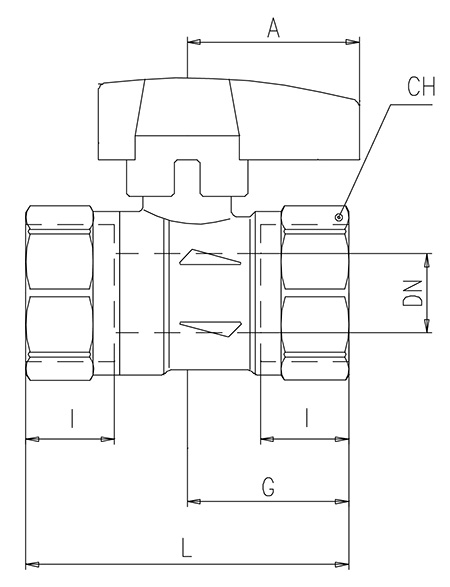

 BV195-Dimensions

*Dimensions in Inches

BV195 06 08 12 16
D 3/8 1/2 3/4 1
DN 0.393 0.453 0.590 0.787
I 0.472 0.610 0.669 0.827
L 1.772 2.126 2.441 2.835
G 0.886 1.043 1.220 1.417
A 1.299 1.299 1.299 1.299
H 1.437 1.535 1.614 1.752
CH 0.787 0.984 1.220 1.496

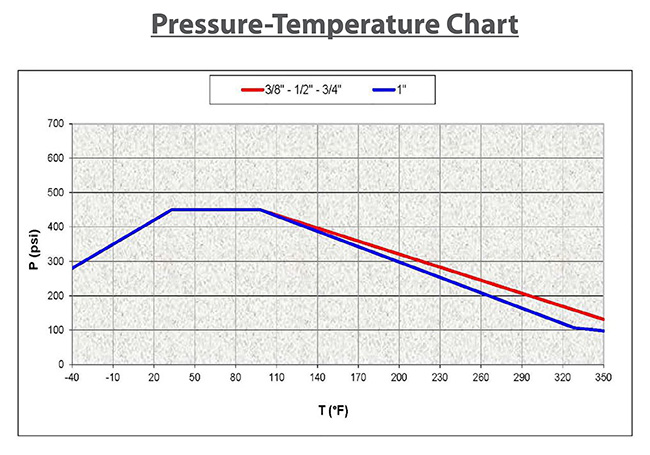

BV195-Pressure and Temperature

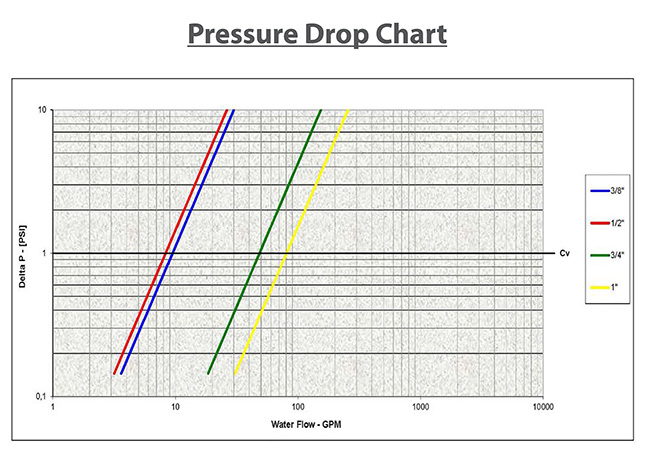

BV195-Pressure Drop
