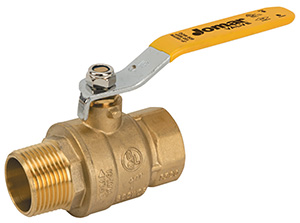

BV92 Brass Ball Valve – Standard Male Female

BV92-MF-300



Features:

  • 600 PSI Working Pressure Valve
  • Gland Follower and Single O-Ring Stem Design
  • Blow-Out Proof Stem
  • 100% Leak Tested

Approvals:

  • UL Listed up to 175 PSI
    • MHKZ – Manual Valves
    • YRPV – Gas Shut-Off Valves
  • MSS SP – 110
  • ANSI B120.1
  • FM Approval (1/4″ – 2″)

Dimensions

JF-BV92-dimensions



Part Size (Inch) A B C D
BV92-04MF 1/4 2.05 1.69 3.35 0.39
BV92-06MF 3/8 2.05 1.69 3.35 0.39
BV92-08MF 1/2 2.50 1.81 3.35 0.59
BV92-12MF 3/4 2.83 2.36 4.29 0.75
BV92-16MF 1 3.27 2.52 4.29 0.98





Part Materials
1  Body Brass – C37700
2  End Connection Brass – C37700
3  Ball Chrome Plated Brass – C37700
4  Seat (2) PTFE
5  Stem Brass – C37700
6  Packing PTFE
7  Stem-o-Ring Buna-N
8  Packing Gland Brass – C37700
9  Handle Steel – Chrome Plated
10  Handle Nut Steel – Chrome Plated
11  Lock Washer Steel – Chrome Plated

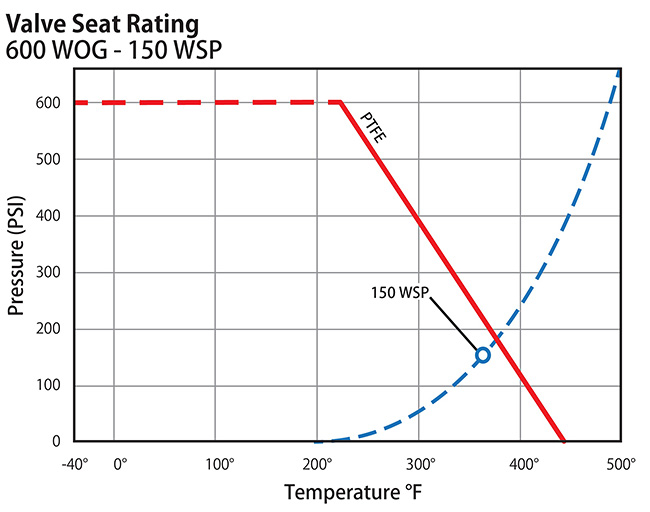

JF-BV92-graph
