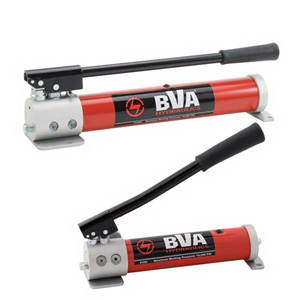

BVA 2-Speed Single Acting Hand Pump

TS-SA-A-WP



Features:

  • Metal Reservoirs Resist cracking
  • Internal Pressure Relief Valve for Overload Protection
  • Good for Use with Cylinders and Hydraulic Tools or OEM Applications
  • Two-Speed Pumps Reduce User Fatigue and Increase Productivity
  • P1000AD Can Be Used With The Outlet Port Facing Upwards or Downwards Position Providing More Flexibility in Operation
  • P1000RP Comes with a 7/16″ – 20 Tank Return Port for Applications Where This is Required
  • Steel and Aluminum Models



SKU Usable Oil Capacity (in³) Oil Outlet Port Pressure Rating/Oil Displacement/Stroke 1st Stage (psi/in³) Pressure Rating/Oil Displacement/Stroke 2nd Stage (psi/in³) Piston Stroke (in) Handle Operating Force (lbs) Weight w/Oil (lbs)
P350 21.4 1/4-18 NPTF 200/0.18 10,000/0.05 0.38 88 6.6
P1000 61 3/8-18 NPTF 200/0.81 10,000/0.14 0.82 99 13.7
P1000AD 53-62 3/8-18 NPTF 200/0.81 10,000/0.14 0.82 99 13.7
P1000RP 61 3/8-18 NPTF 200/0.81 5,000/0.14 0.82 99 13.7
P1201 67 3/8-18 NPTF 200/0.81 10,000/0.14 0.82 99 20.5
P2001 122 3/8-18 NPTF 200/0.81 10,000/0.14 0.82 95 24.2
P2301 134 3/8-18 NPTF 200/0.81 10,000/0.14 0.82 99 27.7
P4301 250 3/8-18 NPTF 200/0.81 10,000/0.14 0.82 99 37.6
P8701 476 3/8-18 NPTF 290/7.71 10,000/0.29 1.69 143 76.0

♦ Oil Capacity Varies by Position; Pump can be mounted Outlet Up or Down

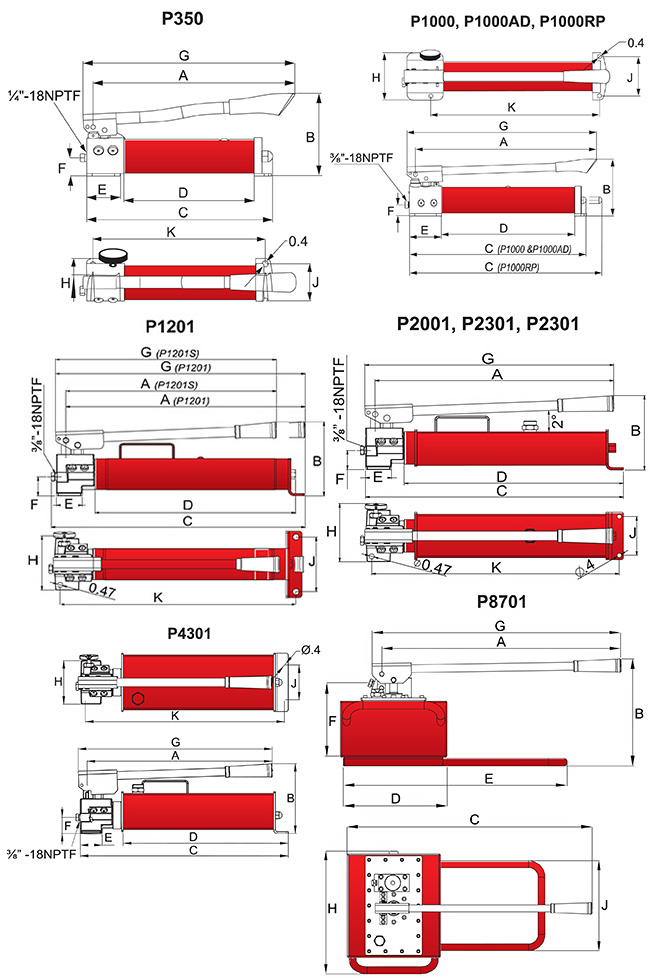

2-Speed-Single-Acting-Dimensions





SKU A B C D E F G H J K
P350 13.43 5.91 13.89 9.09 2.36 1.34 14.13 2.56 2.56
P1000 21.77 6.34 23.03 14.96 3.59 1.26 19.96 3.94 3.94 16.93
P1000AD  21.77 6.34 23.03 14.96 3.59 1.26 19.96 3.94 3.94 16.93
P1000RP 21.63 6.50 20.50 15.13 3.63 1.26 22.63 3.75 3.75 15.50
P1201 21.73 6.73 23.07 18.38 2.13 1.73 22.63 3.74 3.74 18.27
P2001 22.91 6.89 24.29 18.38 2.25 1.73 23.75 2.56 2.56
P2301 21.73 6.81 23.98 3.74 1.00 1.73 23.50 3.74 3.74 22.56
P4301 21.73 7.68 22.87 3.74 1.06 1.73 22.40 3.74 3.74 21.46
P8701 25.79 11.61 30.35 11.54 24.17 8.25 26.94 11.18 11.18

♦ Oil Capacity Varies by Position; Pump can be mounted Outlet Up or Down
