BVA CEB Series Cylinder Base Clevis Tang

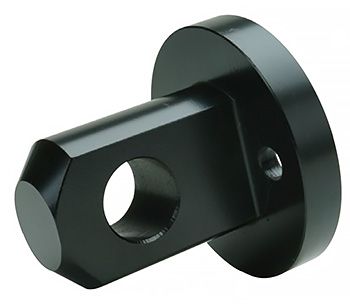

CEB-Base-Clevis-WP



Features:

  • Designed for Ease of Carrying
  • Provides Better Control for Positioning Cylinder

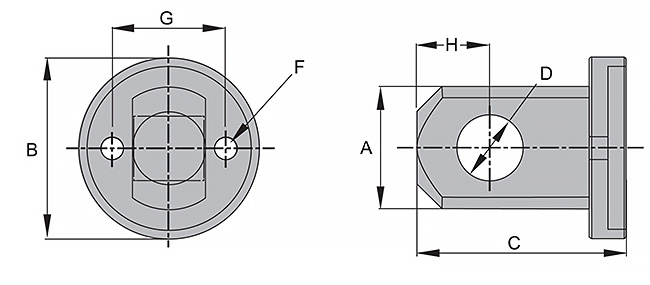

CEB-DIMENSIONS



SKU Cylinder Series Applications A (in) B (in) C (in) D (in) F (in) G (in) H (in)
CEB05 H05* Base 1.52 1.75 2.13 0.63 1.13 1.00 0.63
CEB10 H10 Base 2.28 2.50 2.87 0.88 0.32 1.56 1.00
CEB15 H15 Base 2.77 3.00 2.87 0.88 0.38 1.88 1.00
CEB25 H25 Base 3.40 3.75 3.37 1.25 0.56 2.31 1.25

Safety Sizing Warning
