BVA Cylinder Base

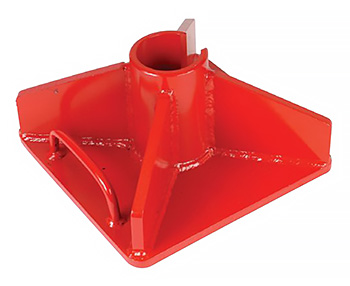

CB-Base-WP

Features:

  • Used for Stabilizing the Single Acting Cylinder
  • Provides a more Steady and Balanced Footing
  • Reinforced Welded Construction
  • Carry Handle

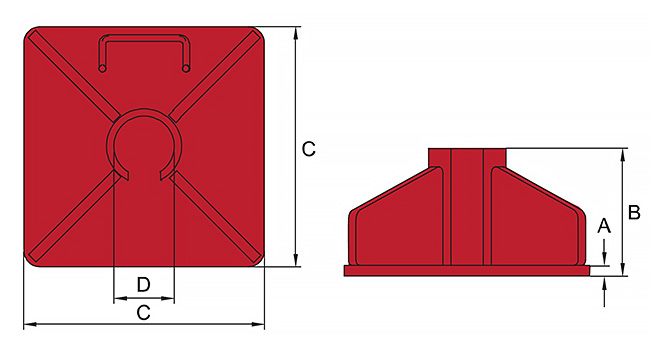

CB-Base-Dimensions



SKU For Use with Cylinder Series A (in) B (in) C (in) D (in)
CB05 H05 * 0.32 4.65 7.87 1.54
CB10 H10 ** 0.39 4.72 9.06 2.28
CB15 H15 0.47 4.80 10.00 2.76
CB25 H25 0.63 4.96 11.02 3.41

     * Except H0500

      ** Except H1001

Safety Sizing Warning
